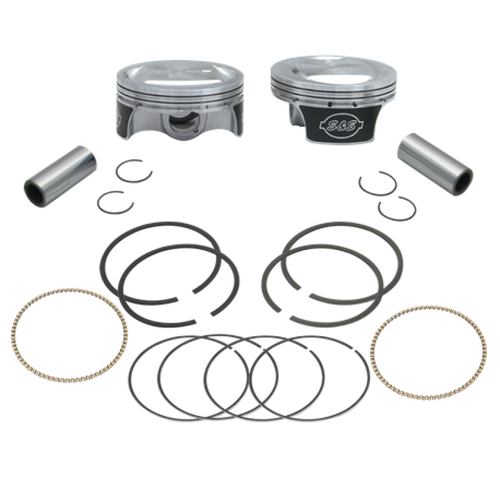

These big bore pistons work with the stock 4" stroke flywheels to convert any 1999-'06 HD? big twin engine from 88" to 97" displacement with 9.7:1 compression with stock heads. Stock cylinders may be bored to accomodate larger pistons, but we recommend S&S 3.927" bore cylinders which feature high strength alloyed cast iron liners. Pistons are compatible with stock rods with tapered wristpin ends. S&S? 3.927" bore pistons are machined to such close tolerances that it is not necessary to measure the piston. Just bore cylinders to nominal diameter +/- 0.0005" for correct clearance. Additionally, the low friction coating on the piston skirt makes taking measurements very difficult. 3.927" standard bore.
- air_freight_prohibited:
- false
- not_carb_approved:
- true
- carb_acknowledgement_required:
- true
- ltl_freight_required:
- false
- prop_65:
- Unknown
- part_type:
- powersports
- epa:
- N/A
- regular_stock:
- false
